1/2(16)

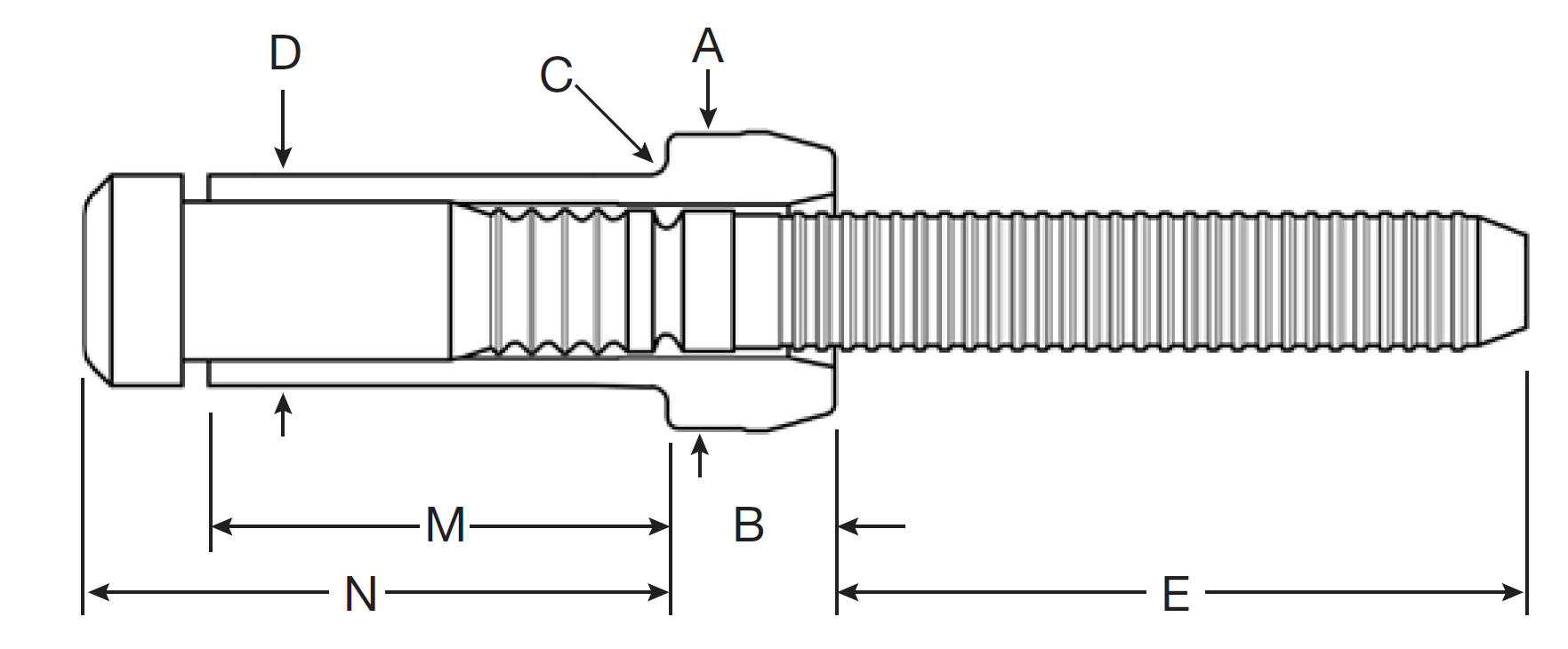

Part No.RemarksDiameterGrip RangeMax Hole SizeABC(max)DE(Min)M(nom)N(Max)Typical Shear (lbs)Typical Tensile (lbs)
BOM-R16-4BOM-R16-41/2".251 -.375.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.5311.2662015013000
BOM-R16-6BOM-R16-61/2".376 -.500.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.1251.3912015013000
BOM-R16-8BOM-R16-81/2".501 -.625.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.251.5162015013000
BOM-R16-10BOM-R16-101/2".626 -.750.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.3751.6412015013000
BOM-R16-12BOM-R16-121/2".751 -.875.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.51.7662015013000
BOM-R16-14BOM-R16-141/2".876 -1.000.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.6251.8912015013000
BOM-R16-16BOM-R16-161/2"1.001 -1.125.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.752.0162015013000
BOM-R16-18BOM-R16-181/2"1.126 -1.250.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.531.8752.1412015013000
BOM-R16-20BOM-R16-201/2"1.251 -1.375.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.5322.2662015013000
BOM-R16-22BOM-R16-221/2"1.376 -1.500.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.532.1252.3912015013000
BOM-R16-24BOM-R16-241/2"1.501 -1.625.546 - .5810.740 - 0.7550.415 - 0.4380.0350.529 - 0.5441.532.252.5162015013000
