Location：Home->Brand->1/4-20 UNC

1/4-20 UNC

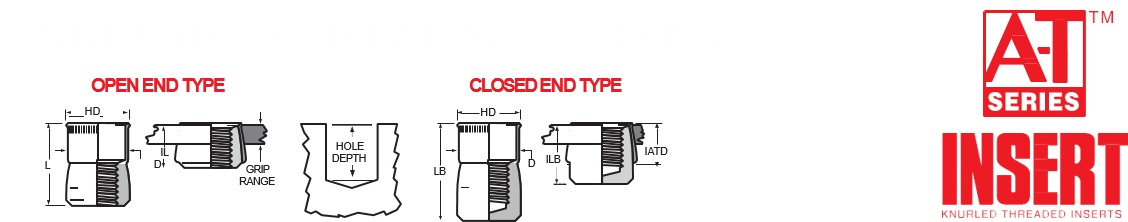

Part No.	Remarks	THREAD SIZE	THREAD CALL OUT	HD ±.005	L ±.015	D MAX.	IL REF.	LB ±.015	ILB REF.	IATD MAX.	HOLE DEPTH MIN.	THREAD	.030 - .090 MAT. THICKNESS DRILL SIZE	.030 - .090 MAT. THICKNESS DECIMAL	.091 - .124 MAT. THICKNESS DRILL SIZE	.091 - .124 MAT. THICKNESS DECIMAL	.125 - .186 MAT. THICKNESS DRILL SIZE	.125 - .186 MAT. THICKNESS DECIMAL	.187 - OVER MAT. THICKNESS DRILL SIZE	.187 - OVER MAT. THICKNESS DECIMAL
ATB6-420	ATB6-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB7-420	ATB7-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB8-420	ATB8-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB9-420	ATB9-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB9A-420	ATB9A-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB9B-420	ATB9B-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB9T-420	ATB9T-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATB10-420	ATB10-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC1-420	ATC1-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC2-420	ATC2-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC3-420	ATC3-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC3R-420	ATC3R-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC3T-420	ATC3T-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC4-420	ATC4-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC4T-420	ATC4T-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC5-420	ATC5-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC6-420	ATC6-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC7-420	ATC7-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC8-420	ATC8-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
ATC9-420	ATC9-420	1/4-20 UNC	420	0.4	0.515	0.3745	0.275	1.005	0.76	0.615	0.54	1/4-20 UNC	3/8	0.375	3/8	0.375	“W”	0.386	25/64	0.3906
