Location：Home->Brand->Cage Nuts **Refreshed Line**

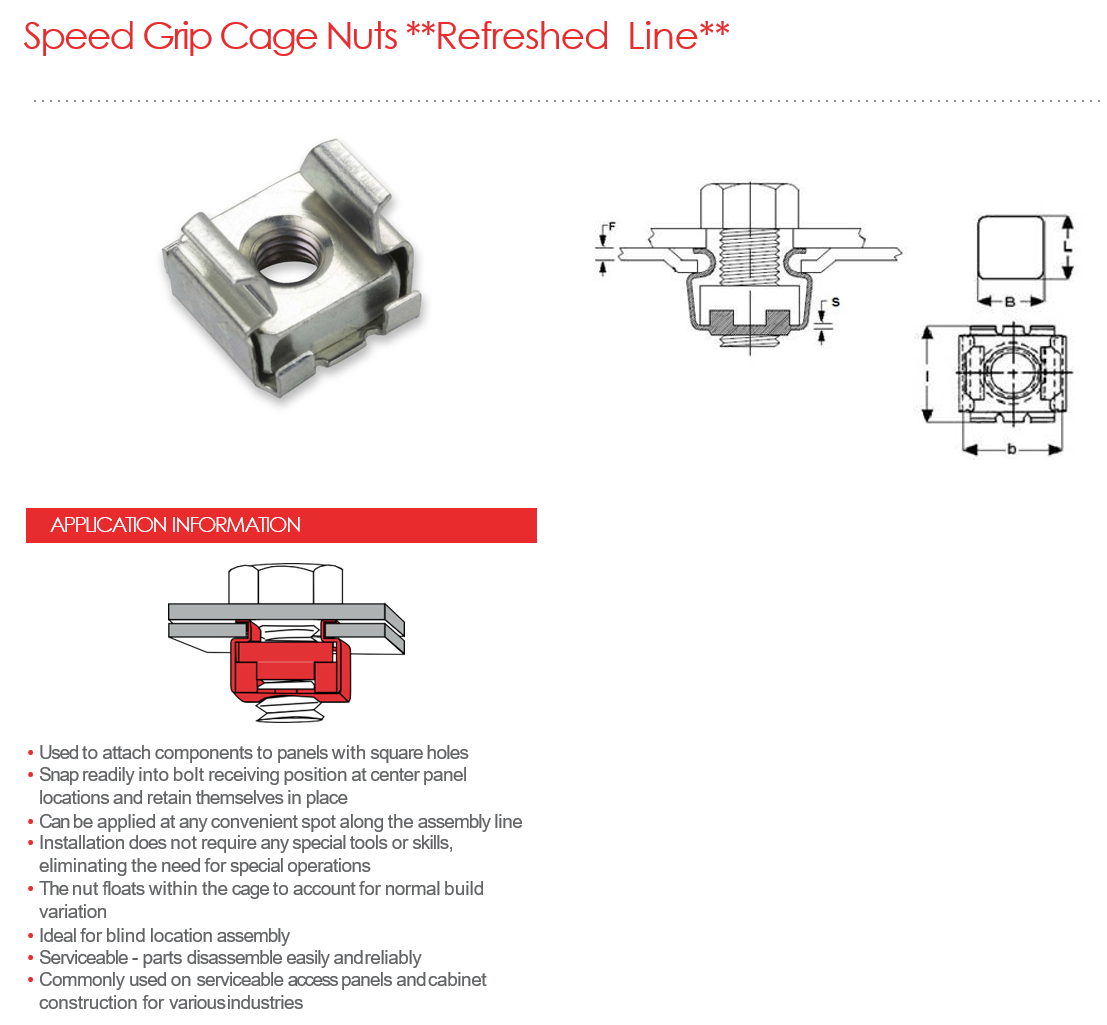

Cage Nuts Refreshed Line



Part Number	Remarks	Replaces Part Number	Thread Specification	Panel Thickness (F)	Hole Width (B)	Nominal Hole Length (L)	Width (b)	Length (l)	Material Thickness (s)
Imperial
242664	242664 D07931-832	D07931-832	8-32	0.020 - 0.063	0.343 - 0.380	0.377	0.49	0.52	0.02
242665	242665 D07941-832	D07941-832	8-32	0.063 - 0.105	0.343 - 0.380	0.377	0.49	0.52	0.02
242666	242666 D07951-832	D07951-832	8-32	0.093 - 0.126	0.343 - 0.380	0.377	0.49	0.52	0.02
242667	242667 D31365-832	D31365-832	8-32	0.125 - 0.156	0.343 - 0.380	0.377	0.49	0.52	0.02
242669	242669 D07931-1024	D07931-1024	10-24	0.020 - 0.063	0.343 - 0.380	0.377	0.49	0.52	0.02
242670	242670 D07941-1024	D07941-1024	10-24	0.063 - 0.105	0.343 - 0.380	0.377	0.49	0.52	0.02
242671	242671 D07951-1024	D07951-1024	10-24	0.093 - 0.126	0.343 - 0.380	0.377	0.49	0.52	0.02
242672	242672 D31365-1024	D31365-1024	10-24	0.125 - 0.156	0.343 - 0.380	0.377	0.49	0.52	0.02
242674	242674 D07931-1032	D07931-1032	10-32	0.020 - 0.063	0.343 - 0.380	0.377	0.49	0.52	0.02
242675	242675 D07941-1032	D07941-1032	10-32	0.063 - 0.105	0.343 - 0.380	0.377	0.49	0.52	0.02
242676	242676 D07951-1032	D07951-1032	10-32	0.093 - 0.126	0.343 - 0.380	0.377	0.49	0.52	0.02
242677	242677 D31365-1032	D31365-1032	10-32	0.125 - 0.156	0.343 - 0.380	0.377	0.49	0.52	0.02
242679	242679 D07931-1224	D07931-1224	12-24	0.020 - 0.063	0.343 - 0.380	0.377	0.49	0.52	0.02
242680	242680 D07941-1224	D07941-1224	12-24	0.063 - 0.105	0.343 - 0.380	0.377	0.49	0.52	0.02
242681	242681 D07951-1224	D07951-1224	12-24	0.093 - 0.126	0.343 - 0.380	0.377	0.49	0.52	0.02
242682	242682 D31365-1224	D31365-1224	12-24	0.125 - 0.156	0.343 - 0.380	0.377	0.49	0.52	0.02
242684	242684 D07988-1420	D07988-1420	1/4-20	0.020 - 0.063	0.343 - 0.380	0.377	0.49	0.52	0.02
240846	240846 D07998-1420	D07998-1420	1/4-20	0.063 - 0.105	0.343 - 0.380	0.377	0.49	0.52	0.02
242685	242685 D07956-1420	D07956-1420	1/4-20	0.093 - 0.126	0.343 - 0.380	0.377	0.49	0.52	0.02
